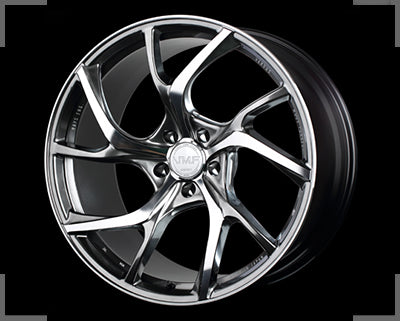

Complete assortment Rays VMF C-01 - 20x9.5J - 5x114.3 - ET: 45 (REFAB/side brightening metal dark +MC)

Specs:
Model: Rays VMF C-01
Size: 20"x9.5J, 5x114.3
ET: 45
Bore Diameter: 73.1mm
Colour: REFAB/side brightening metal dark +MC

Wheels are sold per piece0

---

Shipping:

This product will be shipped from our Japanese Warehouse to any global location. 0This wheel fits:

all PCD 5x114.3

Note: Pay attention to wheel width and offset to ensure a perfect fitting, for more information contact us on the chat!!Big Brake Kits Fitment

For caliper clearance, the rule of thumb is to take your rotor diameter in inch and add an extra 4 inches.
For example:
(306mm) 12"" Rotors: add 4"" - Choose a 16"" wheels for good caliper clearance!
(356 mm) 14"" Rotors: add 4"" - Choose a 18"" wheels...etc


Tyre/Wheel width correspondence

Rim width	Minimum tyre width	Ideal tyre width	Maximum tyre width
5.0J	155 mm	165 or 175 mm	185 mm
5.5J	165 mm	175 or 185 mm	195 mm
6.0J	175 mm	185 or 195 mm	205 mm
6.5J	185 mm	195 or 205 mm	215 mm
7.0J	195 mm	205 or 215 mm	225 mm
7.5J	205 mm	215 or 225 mm	235 mm
8.0J	215 mm	225 or 235 mm	245 mm
8.5J	225 mm	235 or 245 mm	255 mm
9.0J	235 mm	245 or 255 mm	265 mm
9.5J	245 mm	255 or 265 mm	275 mm
10.0J	255 mm	265 or 275 mm	285 mm
10.5J	265 mm	275 or 285 mm	295 mm
11.0J	275 mm	285 or 295 mm	305 mm
11.5J	285 mm	295 or 305 mm	315 mm
12.0J	295 mm	305 or 315 mm	325 mm
12.5J	305 mm	315 or 325 mm	335 mm
