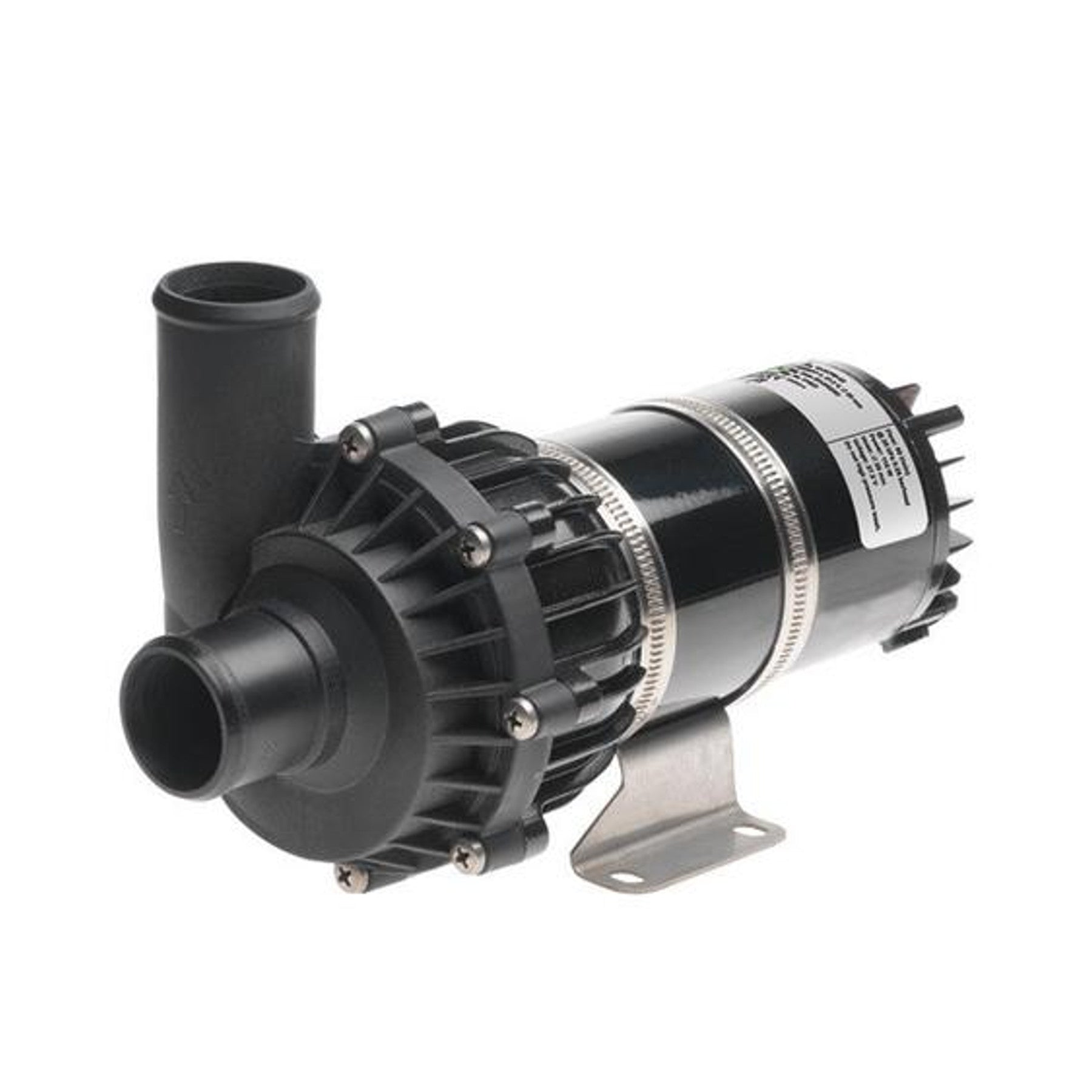

Customer-oriented High Flow CM-series Centrifugal Pump

The CM-series pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low current draw. Suitable for fresh water and ethylene glycol.

Johnson Centrifugal Pump

These pumps are perfect for multiple applications, everything from moving water around a boat, to a caravan to most fresh water purposes.

Pump Specifications	Value
Brand	Johnson
Pump Body	PPA, Glass-fiber reinforced
Motor	12/24V DC continuous duty
Input Power	Max 120W
liquid	Water/glycol (max 60% Glycol), fresh & salt water
Inlet / Outlet	20mm(3/4") or 38mm(1 1/2")
Flow rate	See table below
Dimensions	253 x 120 x 149mm
Weight	~3.0kg

Pump Option	Flow rate (@ 0.25 bar)
CM90 - 20mm (3/4")	50 LPM
CM90 - 38mm (1 1/2")	90 LPM

For lower flow rates please check out the standard flow CM-series
